SIDE STEP MOLDING REMOVAL

id091600804400

1.  Bend back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Move the side step molding in the direction of arrow shown in the figure and remove clip from the body while pinching clip using pliers.

am3zzw00014300

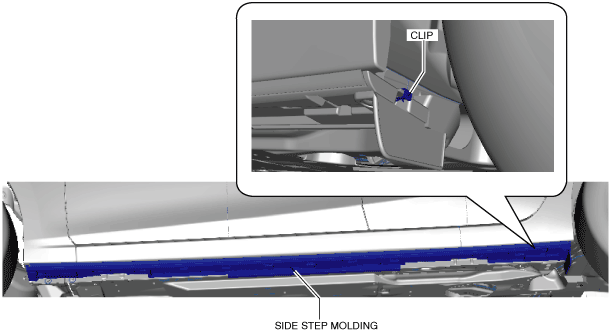

3.  Remove the clip shown in the figure.

am3zzw00014601

4.  Move the side step molding in the direction of the arrow, and remove the side step molding.

am3zzw00014302

5.  After removing the side step molding, remove clips from the body using a fastener remover.
