INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE

id092200033600

Note

• Settings of some personalization features displayed on the M-MDS cannot be switched depending on the vehicle specification.

Smart Brake Support (SBS)

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

Smart Brake Support Volume.

The volume of the smart brake support (SBS) warning alarm can be changed.

High

Not Adopted. / OFF / Low / High

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
Smart Brake Support Volume.	The volume of the smart brake support (SBS) warning alarm can be changed.	High	Not Adopted. / OFF / Low / High	Instrument cluster

Using center display

• For the setting procedure of the personalization features using the center display, refer to "CENTER DISPLAY PERSONALIZATION FEATURES". (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)

Rear Vehicle Monitoring (RVM) System

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

RVM Volume.

The volume of the rear vehicle monitoring (RVM) warning alarm can be changed.

High

Not Adopted. / OFF / Low / High

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
RVM Volume.	The volume of the rear vehicle monitoring (RVM) warning alarm can be changed.	High	Not Adopted. / OFF / Low / High	Instrument cluster

Using center display

Blind Spot Monitoring (BSM) System

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

BSM Volume.

The volume of the blind spot monitoring (BSM) warning alarm can be changed.

High

Not Adopted. / OFF / Low / High

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
BSM Volume.	The volume of the blind spot monitoring (BSM) warning alarm can be changed.	High	Not Adopted. / OFF / Low / High	Instrument cluster

Using center display

Lane Departure Warning System (LDWS)

Note

• For personalization of the warning timing and sensitivity, refer to the FORWARD SENSING CAMERA (FSC) PERSONALIZATION FEATURES SETTING PROCEDURE. (See FORWARD SENSING CAMERA (FSC) PERSONALIZATION FEATURES SETTING PROCEDURE.)

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

LDWS Sound.

The type of the LDWS warning alarm can be changed.

Rumble

Beep / Rumble

Instrument cluster

LDWS Volume.

The volume of the LDWS warning alarm can be changed.

Volume 1

Not Adopted. / Volume 1 / Volume 2 / Volume 3

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
LDWS Sound.	The type of the LDWS warning alarm can be changed.	Rumble	Beep / Rumble	Instrument cluster
LDWS Volume.	The volume of the LDWS warning alarm can be changed.	Volume 1	Not Adopted. / Volume 1 / Volume 2 / Volume 3	Instrument cluster

Using center display

Turn And Hazard Indicator Alarm

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

Turn Signal Volume.

The volume of the turn and hazard indicator alarm can be changed.

High

Not Adopted. / Low / High

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
Turn Signal Volume.	The volume of the turn and hazard indicator alarm can be changed.	High	Not Adopted. / Low / High	Instrument cluster

*1 :Without center display

Using center display

Lights-on Reminder Warning Alarm

Using M-MDS

1. Connect the M-MDS to the DLC-2.

2. After vehicle identification, select the following from the M-MDS initialization screen.

(1) “Module programming”

(2) “Programmable Parameters”

3. Select menu in the “IC”.

4. Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit

Lights-on Reminder Volume.

The volume for the lights-on reminder warning alarm can be changed.

High or Off^*1

Not Adopted. / OFF / Low / High

Instrument cluster

Mazda Modular Diagnostic System (M-MDS) display	Function	Initial setting	Setting contents	Control unit
Lights-on Reminder Volume.	The volume for the lights-on reminder warning alarm can be changed.	High or Off^*1	Not Adopted. / OFF / Low / High	Instrument cluster

*1 :The setting of the lights-on reminder can be changed with the time setting of auto light off system set to Off.

Using center display

Temperature

Note

• When the ambient temperature display is switched, the set A/C cabin temperature display is also changed.

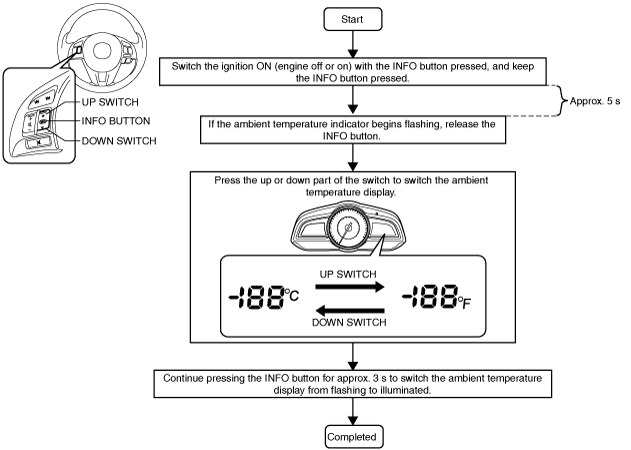

Using instrument cluster (without center display)

am3uuw00010064

Using center display

Intelligent Drive Master (i-DM)

Using instrument cluster

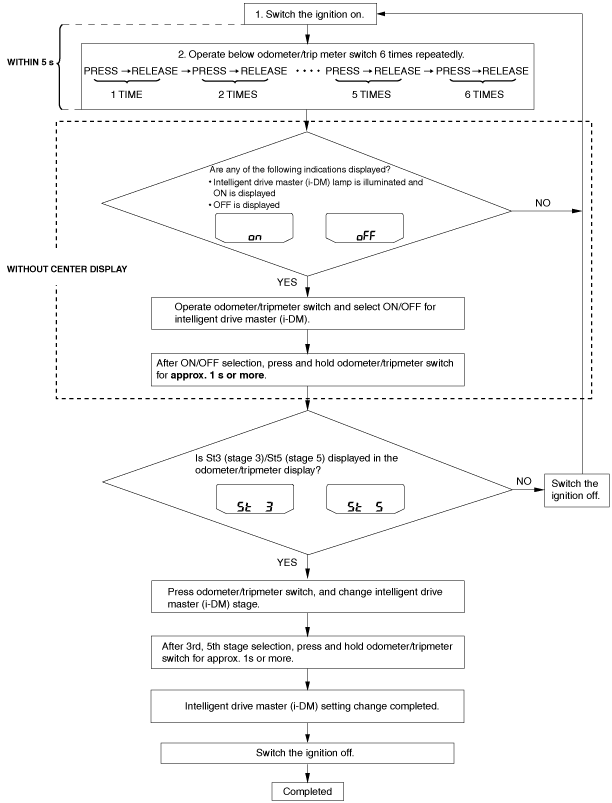

Display/non-display switching and number of stages switching

1. Switch using the following procedure:

am3zzw00016484

Indication on LCD

Function

Initial setting

Setting contents

Control unit

on/oFF^*1

Display/non-display of the Intelligent Drive Master (i-DM) screen can be switched.

ON

ON/OFF

Instrument cluster

St 3/St 5

The number of stages the Intelligent Drive Master (i-DM) can be switched.

St 3

St 3/St 5

Instrument cluster

Indication on LCD	Function	Initial setting	Setting contents	Control unit
on/oFF^*1	Display/non-display of the Intelligent Drive Master (i-DM) screen can be switched.	ON	ON/OFF	Instrument cluster
St 3/St 5	The number of stages the Intelligent Drive Master (i-DM) can be switched.	St 3	St 3/St 5	Instrument cluster

*1 :Without center display

Using center display
